+<h2>CAS应用集成</h2>
+本文介绍CAS应用如何与MaxKey进行集成。
+
+<h2>应用注册</h2>
+

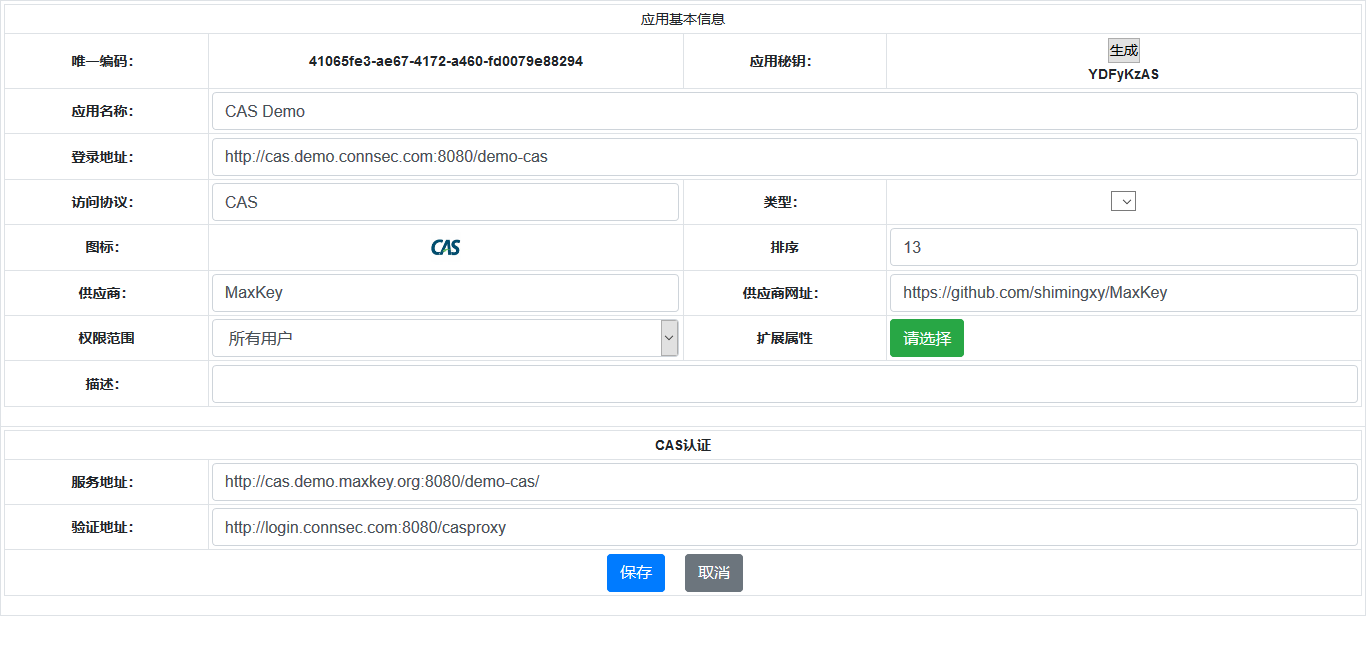

+应用在MaxKey管理系统进行注册，注册的配置信息如下
+
+<img src="{{ "/images/sso/sso_cas_conf.png" | prepend: site.baseurl }}?{{ site.time | date: "%Y%m%d%H%M" }}"  alt=""/>
+
+
+<h2>CAS客户端配置</h2>
+
+本文使用JAVA WEB程序为例
+jar包依赖如下
+cas-client-core-3.2.1.jar
+
+commons-codec-1.4.jar
+
+commons-logging-1.1.1.jar
+
+slf4j-api-1.5.11.jar
+
+
+<pre><code class="xml hljs">
+&lt;?xml version="1.0" encoding="UTF-8"?&gt;
+&lt;web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
+	xmlns="http://java.sun.com/xml/ns/javaee"
+	xmlns:web="http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd"
+	xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd"
+	version="2.5"&gt;
+	&lt;display-name&gt;&lt;/display-name&gt;
+	&lt;listener&gt;
+		&lt;listener-class&gt;org.jasig.cas.client.session.SingleSignOutHttpSessionListener&lt;/listener-class&gt;
+	&lt;/listener&gt;
+	&lt;filter&gt;
+		&lt;filter-name&gt;CAS Single Sign Out Filter&lt;/filter-name&gt;
+		&lt;filter-class&gt;org.jasig.cas.client.session.SingleSignOutFilter&lt;/filter-class&gt;
+	&lt;/filter&gt;
+	&lt;filter-mapping&gt;
+		&lt;filter-name&gt;CAS Single Sign Out Filter&lt;/filter-name&gt;
+		&lt;url-pattern&gt;/index.jsp&lt;/url-pattern&gt;
+	&lt;/filter-mapping&gt;
+	&lt;filter&gt;
+		&lt;filter-name&gt;CAS Filter&lt;/filter-name&gt;
+		&lt;filter-class&gt;org.jasig.cas.client.authentication.AuthenticationFilter&lt;/filter-class&gt;
+		&lt;!-- cas server login url --&gt;
+		&lt;init-param&gt;
+			&lt;param-name&gt;casServerLoginUrl&lt;/param-name&gt;
+			&lt;param-value&gt;&gt;https://sso.maxkey.org/maxkey/authz/cas/&lt;/param-value&gt;
+		&lt;/init-param&gt;
+		&lt;!-- cas client url, in end of url / is required --&gt;
+		&lt;init-param&gt;
+			&lt;param-name&gt;serverName&lt;/param-name&gt;
+			&lt;param-value&gt;http://cas.demo.maxkey.org:8080/&lt;/param-value&gt;
+		&lt;/init-param&gt;
+	&lt;/filter&gt;
+	&lt;filter-mapping&gt;
+		&lt;filter-name&gt;CAS Filter&lt;/filter-name&gt;
+		&lt;url-pattern&gt;/index.jsp&lt;/url-pattern&gt;
+	&lt;/filter-mapping&gt;
+
+	&lt;!-- Cas10TicketValidationFilter Cas20ProxyReceivingTicketValidationFilter --&gt;
+	&lt;filter&gt;
+		&lt;filter-name&gt;CAS Validation Filter&lt;/filter-name&gt;
+		&lt;filter-class&gt;org.jasig.cas.client.validation.Cas20ProxyReceivingTicketValidationFilter&lt;/filter-class&gt;
+		&lt;!-- cas server login url --&gt;
+		&lt;init-param&gt;
+			&lt;param-name&gt;casServerUrlPrefix&lt;/param-name&gt;
+			&lt;param-value&gt;https://sso.maxkey.org/maxkey/authz/cas/&lt;/param-value&gt;
+		&lt;/init-param&gt;
+		&lt;!-- cas client url --&gt;
+		&lt;init-param&gt;
+			&lt;param-name&gt;serverName&lt;/param-name&gt;
+			&lt;param-value&gt;http://cas.demo.maxkey.org:8080/&lt;/param-value&gt;
+		&lt;/init-param&gt;
+	&lt;/filter&gt;
+	&lt;filter-mapping&gt;
+		&lt;filter-name&gt;CAS Validation Filter&lt;/filter-name&gt;
+		&lt;url-pattern&gt;/index.jsp&lt;/url-pattern&gt;
+	&lt;/filter-mapping&gt;
+	&lt;filter&gt;
+		&lt;filter-name&gt;CAS HttpServletRequest Wrapper Filter&lt;/filter-name&gt;
+		&lt;filter-class&gt;
+			org.jasig.cas.client.util.HttpServletRequestWrapperFilter
+		&lt;/filter-class&gt;
+	&lt;/filter&gt;
+	&lt;filter-mapping&gt;
+		&lt;filter-name&gt;CAS HttpServletRequest Wrapper Filter&lt;/filter-name&gt;
+		&lt;url-pattern&gt;/index.jsp&lt;/url-pattern&gt;
+	&lt;/filter-mapping&gt;
+	&lt;filter&gt;
+		&lt;filter-name&gt;CAS Assertion Thread Local Filter&lt;/filter-name&gt;
+		&lt;filter-class&gt;org.jasig.cas.client.util.AssertionThreadLocalFilter&lt;/filter-class&gt;
+	&lt;/filter&gt;
+	&lt;filter-mapping&gt;
+		&lt;filter-name&gt;CAS Assertion Thread Local Filter&lt;/filter-name&gt;
+		&lt;url-pattern&gt;/index.jsp&lt;/url-pattern&gt;
+	&lt;/filter-mapping&gt;
+	&lt;welcome-file-list&gt;
+		&lt;welcome-file&gt;index.jsp&lt;/welcome-file&gt;
+	&lt;/welcome-file-list&gt;
+&lt;/web-app&gt;
+</code></pre>
+
+
+<pre><code class="jsp hljs">
+&lt;%@ page language="java" import="java.util.*" pageEncoding="utf-8"%&gt;
+&lt;%@ page language="java" import="java.util.Map.Entry" %&gt;
+&lt;%@ page language="java" import="org.apache.commons.codec.binary.Base64" %&gt;
+&lt;%@ page language="java" import="org.jasig.cas.client.authentication.AttributePrincipal" %&gt;
+&lt;%@ page language="java" import="org.jasig.cas.client.validation.Assertion" %&gt;
+&lt;%@ page language="java" import="org.jasig.cas.client.util.AbstractCasFilter" %&gt;
+&lt;%
+	String path = request.getContextPath();
+	String basePath = request.getScheme()+"://"+request.getServerName()+":"+request.getServerPort()+path+"/";
+	System.out.println("CAS Assertion Success . ");
+	Assertion assertion = (Assertion) request.getSession().getAttribute(AbstractCasFilter.CONST_CAS_ASSERTION);
+
+
+	String username=     assertion.getPrincipal().getName();
+%&gt;
+
+&lt;!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN"&gt;
+&lt;html&gt;
+  &lt;head&gt;
+    &lt;base href="&lt;%=basePath%&gt;"&gt;
+
+    &lt;title&gt;Demo CAS&lt;/title&gt;
+	&lt;meta http-equiv="pragma" content="no-cache"&gt;
+	&lt;meta http-equiv="cache-control" content="no-cache"&gt;
+	&lt;meta http-equiv="expires" content="0"&gt;
+	&lt;meta http-equiv="keywords" content="keyword1,keyword2,keyword3"&gt;
+	&lt;meta http-equiv="description" content="CAS Demo"&gt;
+	&lt;link rel="shortcut icon" type="image/x-icon" href="&lt;%=basePath %&gt;/images/favicon.ico"/&gt;
+	&lt;!--
+	&lt;link rel="stylesheet" type="text/css" href="styles.css"&gt;
+	--&gt;
+	&lt;style type="text/css"&gt;
+		body{
+			margin: 0;
+			margin-top: 0px;
+			margin-left: auto;
+			margin-right: auto;
+			padding: 0 0 0 0px;
+			font-size: 12px;
+			text-align:center;
+			float:center;
+			font-family: "Arial", "Helvetica", "Verdana", "sans-serif";
+		}
+		.container {
+			width: 990px;
+			margin-left: auto;
+			margin-right: auto;
+			padding: 0 10px
+		}
+		table.datatable {
+			border: 1px solid #d8dcdf;
+			border-collapse:collapse;
+			border-spacing:0;
+			width: 100%;
+		}
+
+		table.datatable th{
+			border: 1px solid #d8dcdf;
+			border-collapse:collapse;
+			border-spacing:0;
+			height: 40px;
+		}
+
+
+		table.datatable td{
+			border: 1px solid #d8dcdf;
+			border-collapse:collapse;
+			border-spacing:0;
+			height: 40px;
+		}
+
+		table.datatable td.title{
+			text-align: center;
+			font-size: 20px;
+			font-weight: bold;
+		}
+	&lt;/style&gt;
+  &lt;/head&gt;
+
+  &lt;body&gt;
+  		&lt;div class="container"&gt;
+	  		&lt;table class="datatable"&gt;
+	  			&lt;tr&gt;
+	  				&lt;td colspan="2" class="title"&gt;CAS Demo for MaxKey&lt;/td&gt;
+	  			&lt;/tr&gt;
+	  			&lt;tr&gt;
+	  				&lt;td&gt;CAS Logo&lt;/td&gt;
+	  				&lt;td&gt; &lt;img src="&lt;%=basePath %&gt;/images/cas.png"/&gt;&lt;/td&gt;
+	  			&lt;/tr&gt;
+	  			&lt;tr&gt;
+	  				&lt;td width="50%"&gt;CAS Assertion&lt;/td&gt;
+	  				&lt;td&gt;&lt;%=username %&gt;&lt;/td&gt;
+	  			&lt;/tr&gt;
+	  			&lt;tr&gt;
+	  				&lt;td&gt;CAS Has Attributes &lt;/td&gt;
+	  				&lt;td&gt;&lt;%=!assertion.getPrincipal().getAttributes().isEmpty() %&gt; size : &lt;%=assertion.getPrincipal().getAttributes().size() %&gt;&lt;/td&gt;
+	  			&lt;/tr&gt;
+	  			&lt;%
+		  			Map&lt;String, Object&gt; attMap = assertion.getPrincipal().getAttributes();
+		            for (Entry&lt;String, Object&gt; entry : attMap.entrySet()) {
+		            	String attributeValue=entry.getValue()==null?"":entry.getValue().toString();
+		            	System.out.println("attributeValue : "+attributeValue);
+		            	if(attributeValue.startsWith("base64:")){
+		            		attributeValue=new String(Base64.decodeBase64(attributeValue.substring("base64:".length())),"UTF-8");
+		            	}
+		        %&gt;
+	  			&lt;tr&gt;
+	  				&lt;td&gt;CAS &lt;%=entry.getKey() %&gt; &lt;/td&gt;
+	  				&lt;td&gt;&lt;%=attributeValue %&gt;&lt;/td&gt;
+	  			&lt;/tr&gt;
+	  			&lt;%}%&gt;
+	  		&lt;/table&gt;
+  		&lt;/div&gt;
+  &lt;/body&gt;
+&lt;/html&gt;
+</code></pre>

docs/sso/jwt.md

@@ -1 +1,8 @@
-TODO
+<h2>JWT应用集成</h2>
+本文介绍JWT应用如何与MaxKey进行集成。
+
+<h2>应用注册</h2>
+

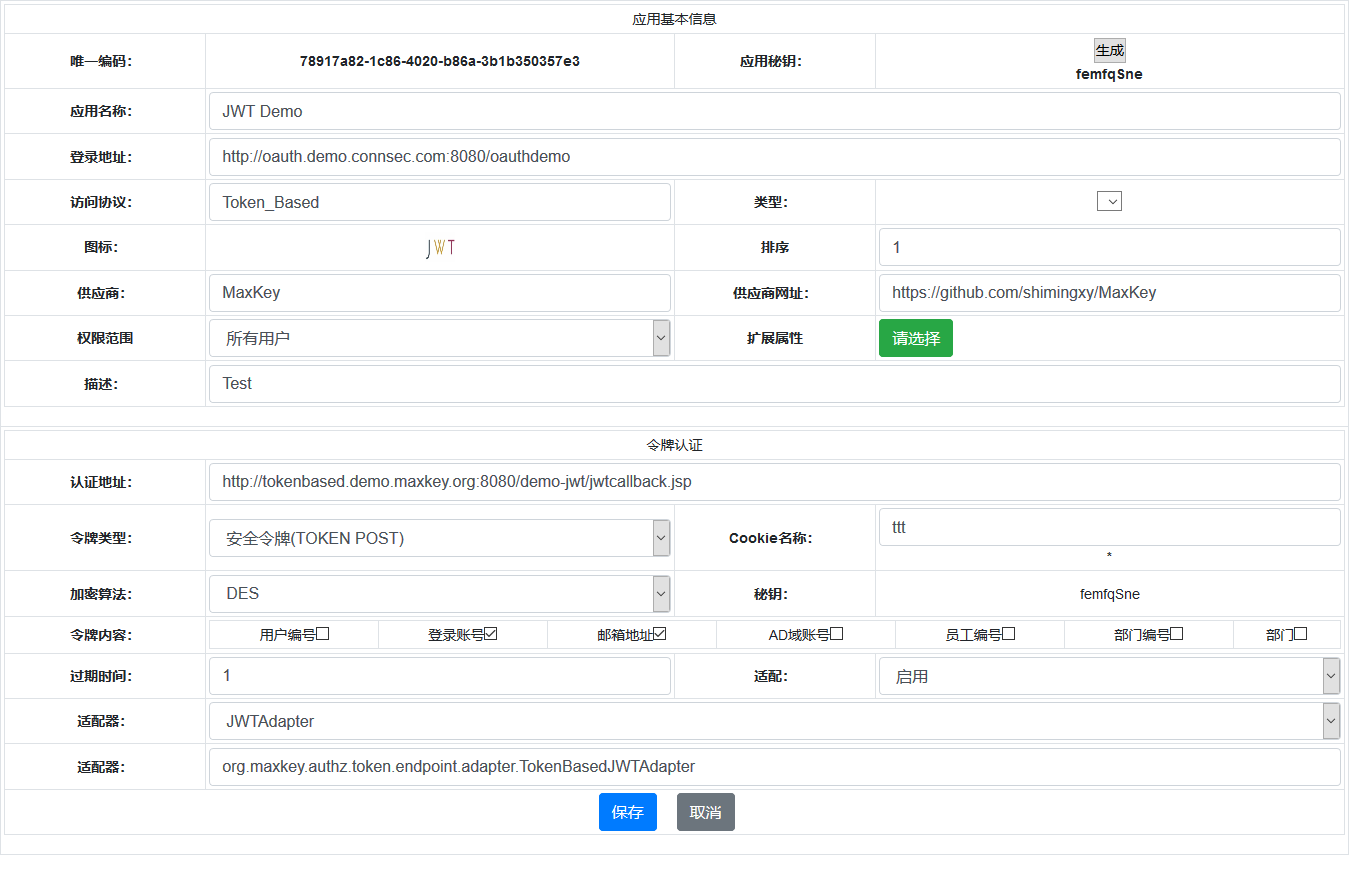

+应用在MaxKey管理系统进行注册，注册的配置信息如下
+
+<img src="{{ "/images/sso/sso_jwt_conf.png" | prepend: site.baseurl }}?{{ site.time | date: "%Y%m%d%H%M" }}"  alt=""/>

docs/sso/saml_aly.md

@@ -1 +1,15 @@
-TODO
+<h2>阿里云集成</h2>
+本文介绍阿里云使用SAML如何与MaxKey进行集成。
+
+<h2>应用注册</h2>
+
+首先需要注册阿里云，并开通SAML认证功能
+

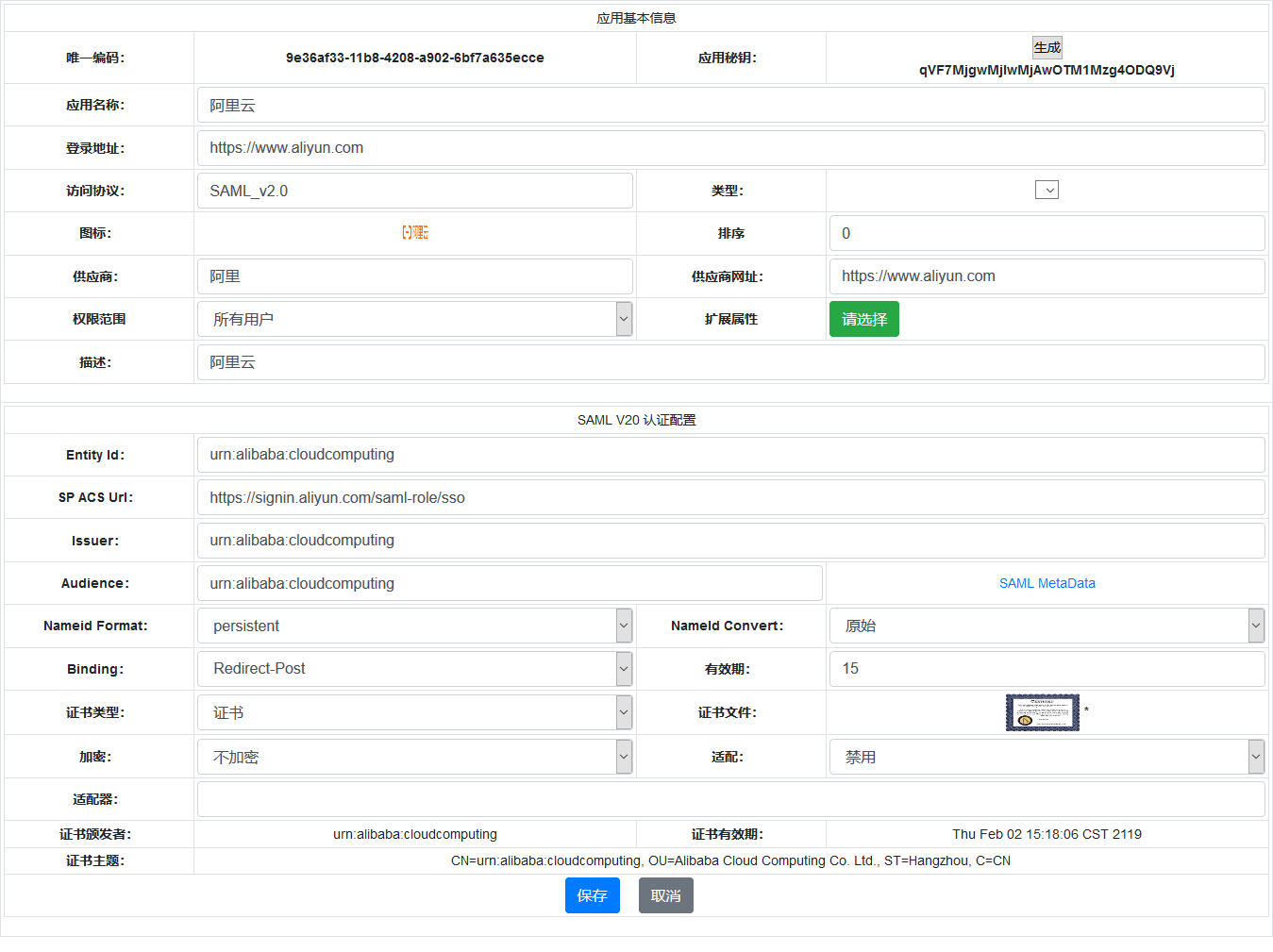

+应用在MaxKey管理系统进行注册，注册的配置信息如下
+
+
+<img src="{{ "/images/sso/sso_saml_aly_conf.png" | prepend: site.baseurl }}?{{ site.time | date: "%Y%m%d%H%M" }}"  alt=""/>
+

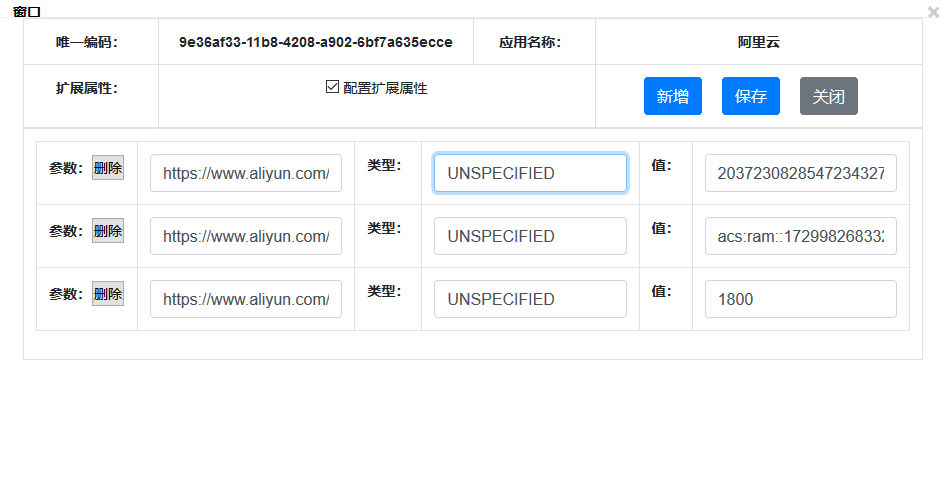

+扩展属性配置
+
+<img src="{{ "/images/sso/sso_saml_aly_conf_ex.png" | prepend: site.baseurl }}?{{ site.time | date: "%Y%m%d%H%M" }}"  alt=""/>

docs/sso/saml_txy.md

@@ -1 +1,14 @@
-TODO
+<h2>腾讯云集成</h2>
+本文介绍腾讯云使用SAML如何与MaxKey进行集成。
+
+<h2>应用注册</h2>
+
+首先需要注册腾讯云，并开通SAML认证功能
+

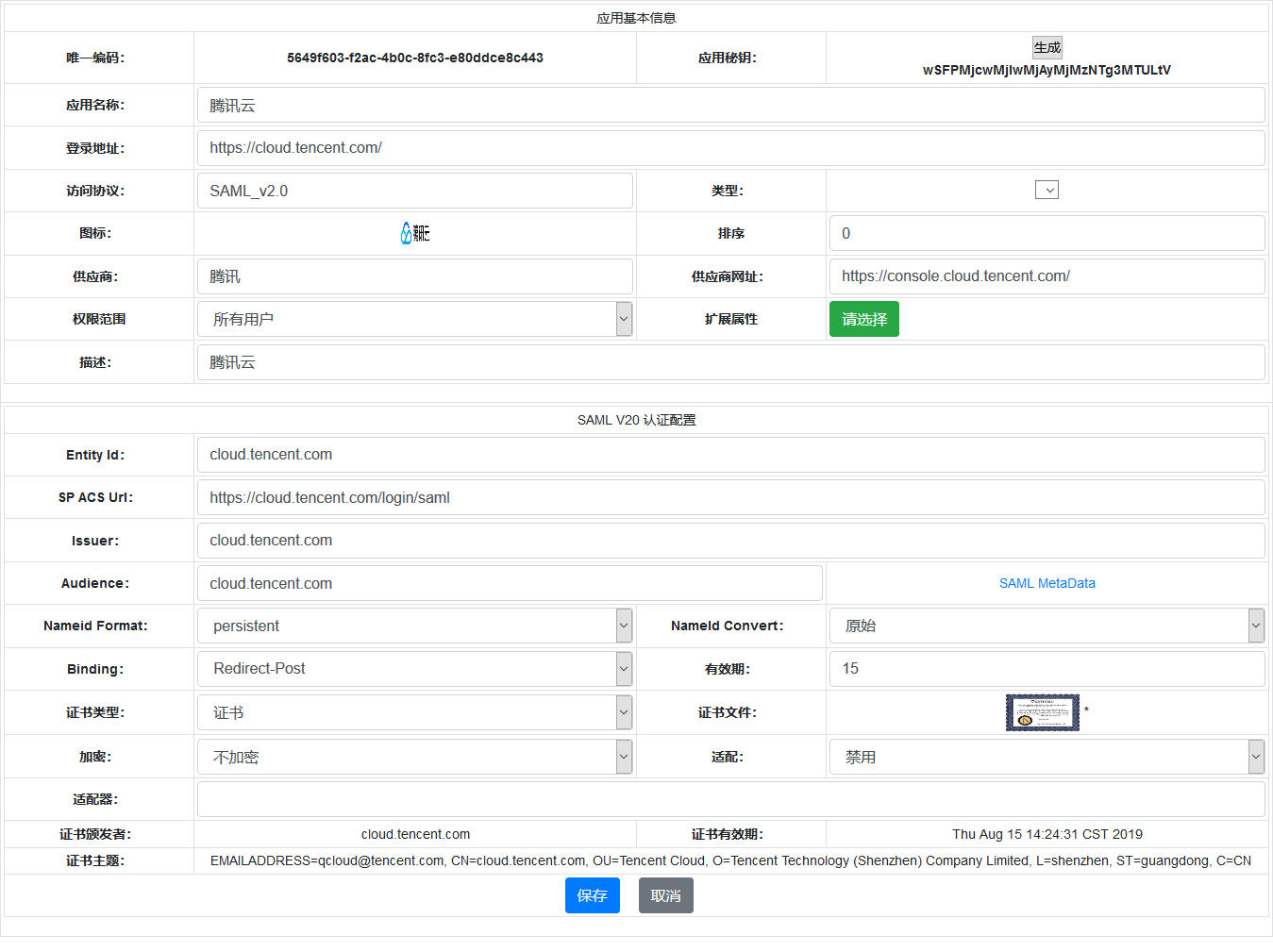

+应用在MaxKey管理系统进行注册，注册的配置信息如下
+
+<img src="{{ "/images/sso/sso_saml_txy_conf.png" | prepend: site.baseurl }}?{{ site.time | date: "%Y%m%d%H%M" }}"  alt=""/>
+

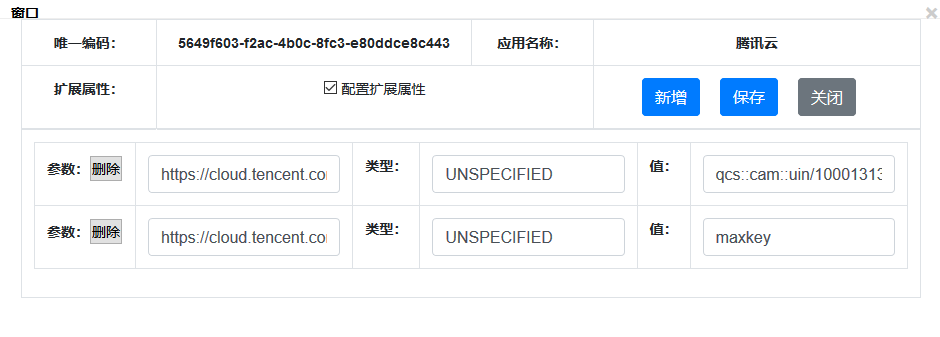

+扩展属性配置
+
+<img src="{{ "/images/sso/sso_saml_txy_conf_ex.png" | prepend: site.baseurl }}?{{ site.time | date: "%Y%m%d%H%M" }}"  alt=""/>
